Model C200
C200 Multi-Platform Smart Charger | 12V-72V Adaptive Power Solution
- Max 94% Efficiency
- Fanless Natural Cooling
- Built-in Active PFC
A universal, MCU-controlled smart charger supporting multiple battery chemistries and advanced communication protocols (CAN2.0 / RS-485). One sleek hardware platform to power your entire fleet.
Global Certifications
- CE
- FCC
- UL
- UKCA
- SAA
- PSE
- KC
Voltage & Current Output Matrix
| Nominal Voltage | Voltage Output Range | Current Output Range | Max Output Power |
|---|---|---|---|
| 12V Series | 12.0V - 16.8V | 0.1A - 10.0A | 168.0W |
| 24V Series | 24.0V - 29.4V | 0.1A - 7.0A | 205.8W |
| 36V Series | 36.0V - 42.0V | 0.1A - 5.2A | 218.4W |
| 48V Series | 48.0V - 58.8V | 0.1A - 4.0A | 235.2W |
| 60V Series | 60.0V - 71.4V | 0.1A - 3.0A | 214.2W |
| 72V Series | 72.0V - 84.0V | 0.1A - 2.6A | 218.4W |
Other voltage and current set-points can be configured for your battery pack on request.
Specifications
- Universal AC Input
- 90VAC - 264VAC, 50/60Hz (2.0A Max)
- Eco-Friendly Active PFC
- PF > 0.9 @220VAC (High power factor, eco-compliant)
- Multi-Chemistry Support
- Fully compatible with: • Lithium-Ion (NMC, Lithium Manganese, Li-NiCoMn) • Lead-Acid (Flooded, GEL, AGM)
- Operating Temperature
- -20°C to 40°C (-4°F to 104°F)
- Ultra-Lightweight
- 0.8 kg (Perfect for integrated or on-board placement)
100% Tailored DC Output Terminals

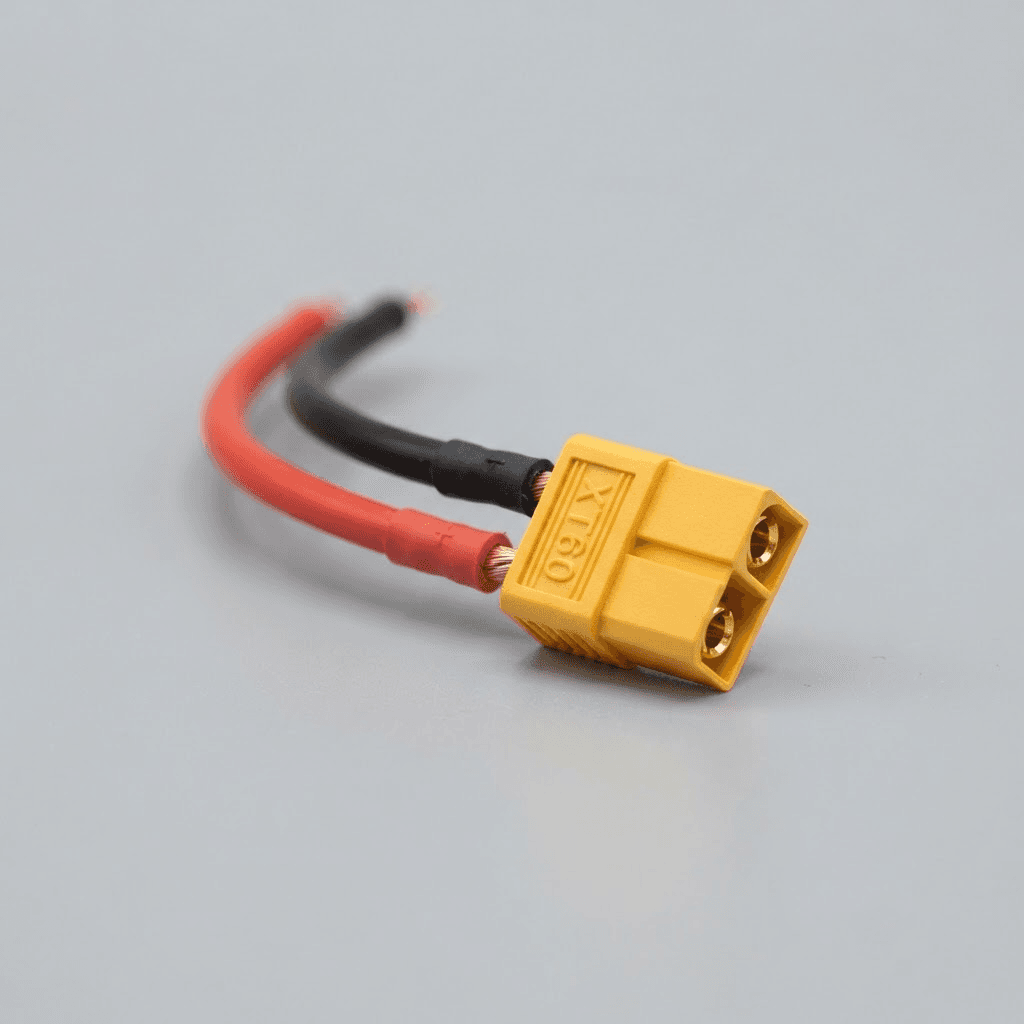

XT60

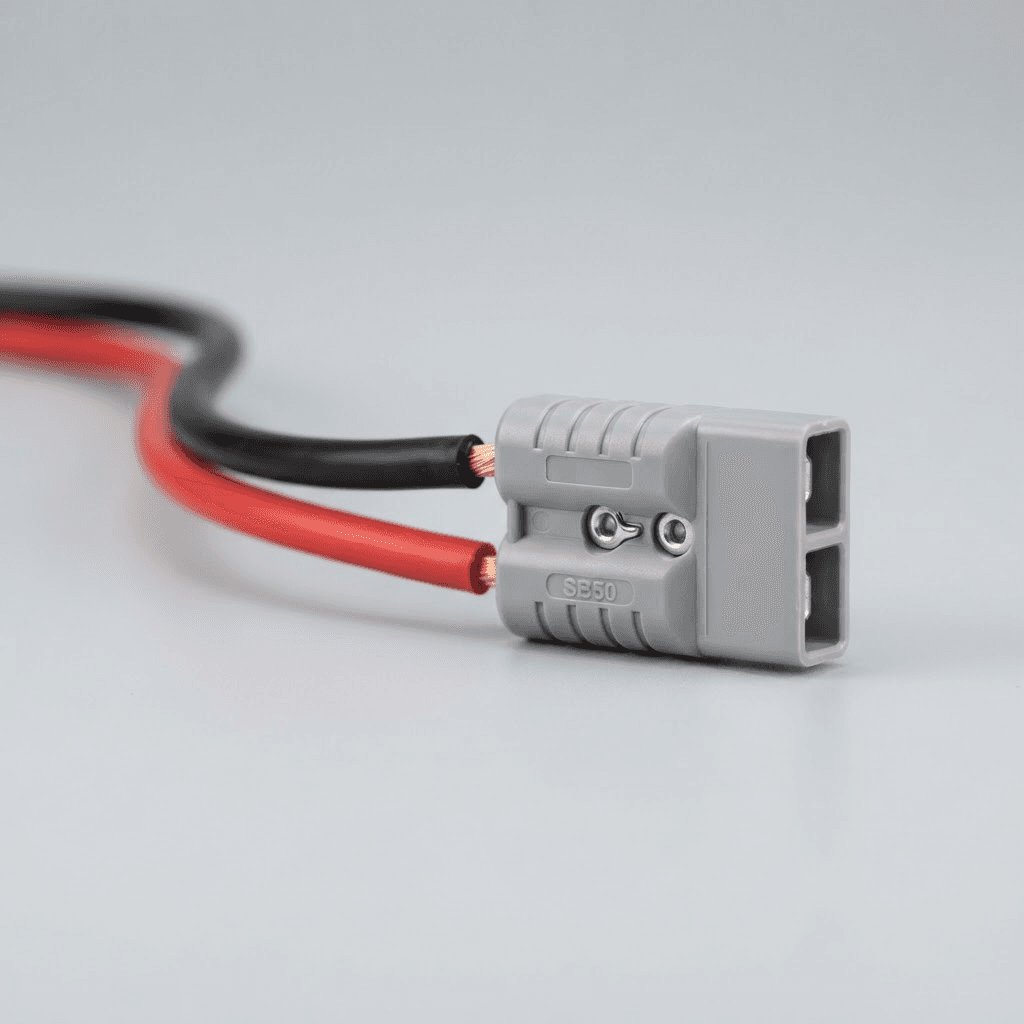

Anderson

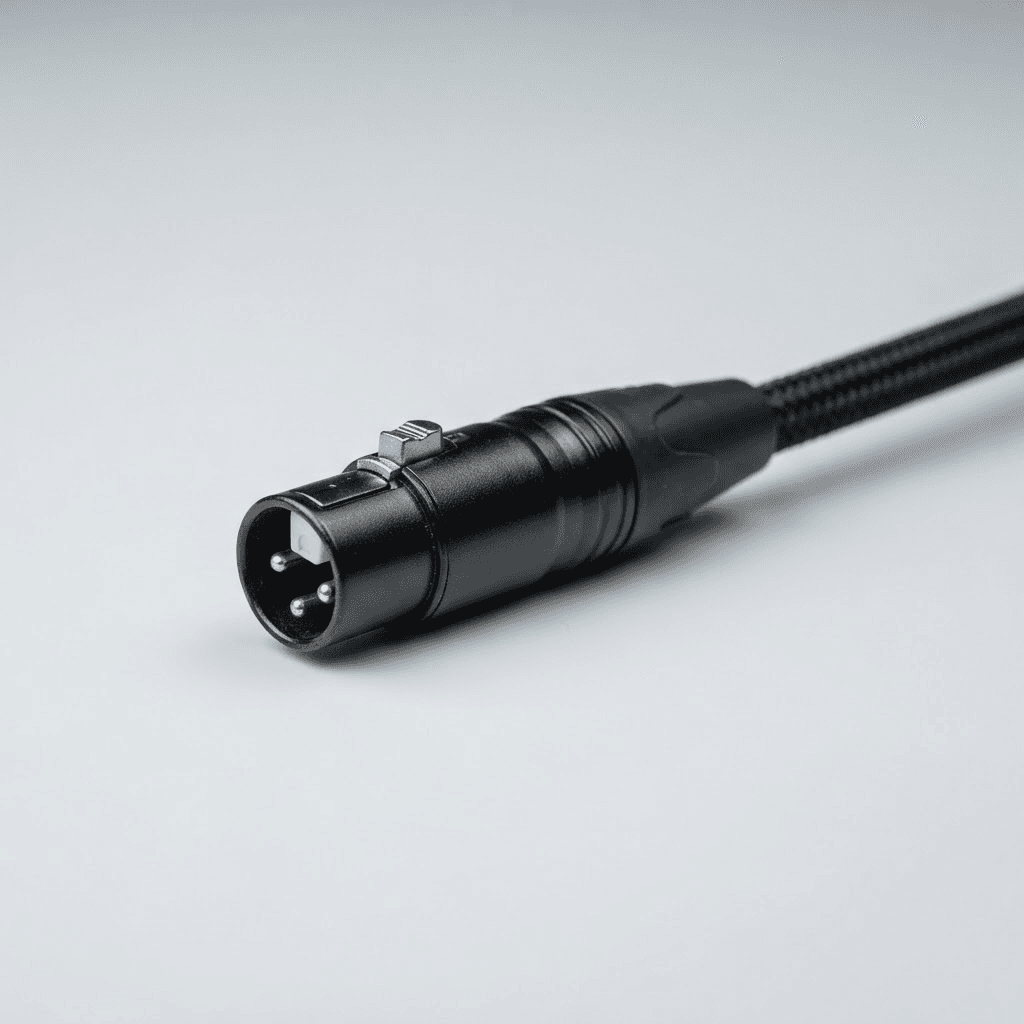

XLR 3-Pin

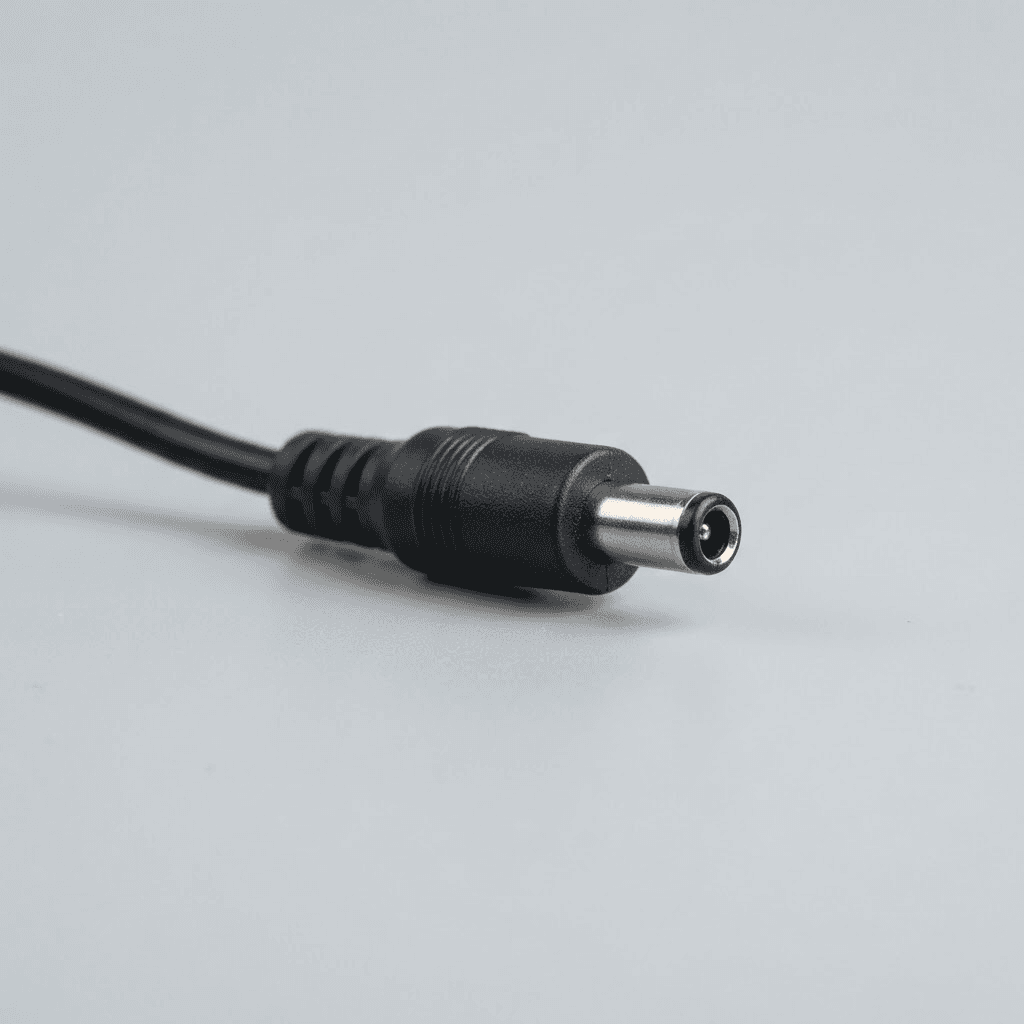

DC 5.5 Barrel

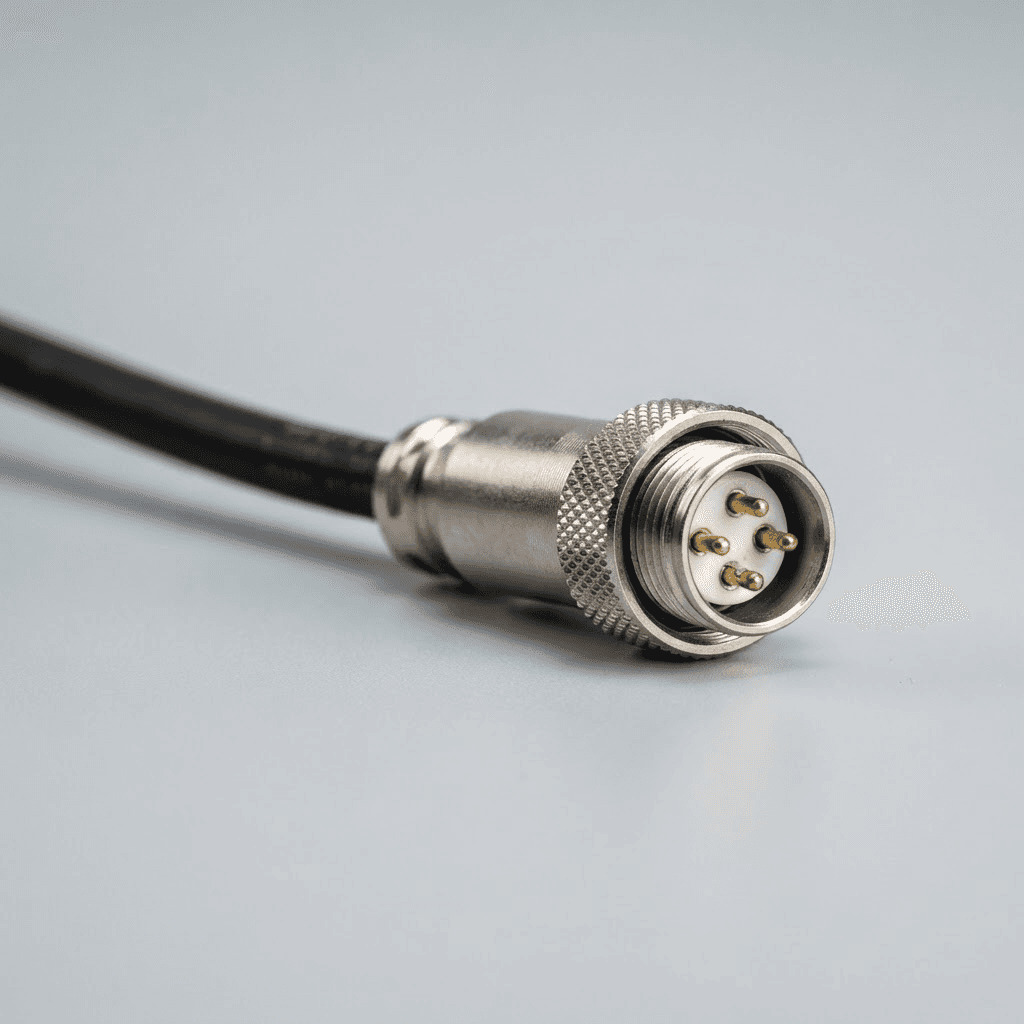

GX16 Aviation
- XT30
- Alligator Clips
- Ring Terminals
- Custom Wire Harness
Global Grid Compatibility: AC Input Plugs
Every unit ships with the regional AC cord your market requires, so the charger is retail-ready on arrival.
- US / Canada
- European Union
- United Kingdom
- Australia / NZ
- Japan
- Korea
- China
C200 highlights
100% Fanless Architecture
Silent, natural cooling design. Eliminates fan-vulnerability, protecting internal components from dust, moisture, and mechanical failure.
Advanced Communication Protocols
Integrated support for CAN2.0, RS-485, and Single-Wire Communication for seamless telemetry with smart BMS.
Embedded MCU Intelligence
Microcontroller-driven smart charging curves that automatically adjust voltage/current to maximize battery lifespan.
6-Layer Safety Protection
- Short-Circuit Protection
- Over-Voltage Protection
- Over-Current Protection
- Over-Temperature Protection
- Reverse-Polarity Protection
- DC Output Anti-Spark Tech
C200 Q&A
Standard configurations start from small trial orders, so you can validate the market before scaling. Custom branding, plugs, and output settings usually start from a few hundred units. Tell us your target volume and we will quote the matching tier.
Yes. Output voltage and current, charging curve, DC connector, AC plug, cable length, and BMS communication (CAN / RS-485) can all be matched to your pack. Send us your battery specification and we will confirm feasibility within 12 hours.
Standard samples ship within 3-7 working days. Customized samples typically take 7-15 working days depending on the changes required.
The certification marks for this model are listed at the top of this page, and every unit passes 100% pre-shipment testing. We provide a standard warranty and full technical documentation for customs clearance and platform listings.
